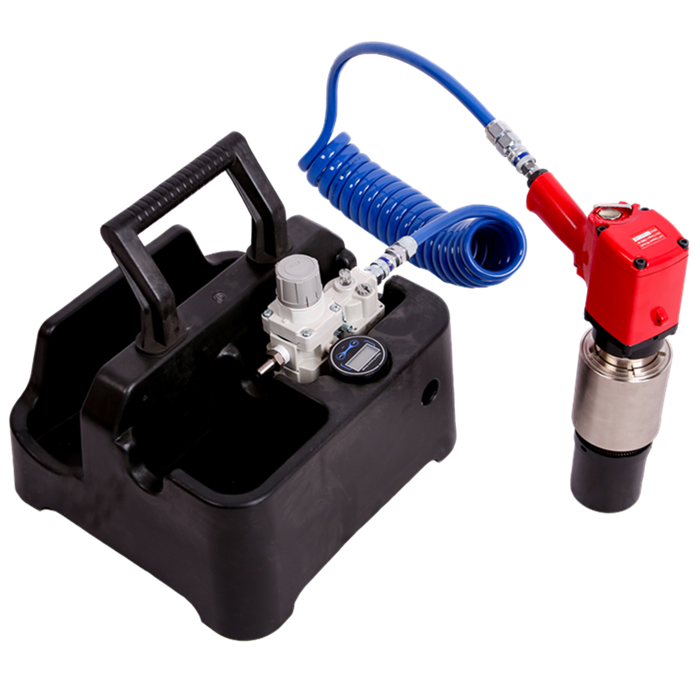

PW-SS Vertical Type Pneumatic Torque Wrench

Product inquiry


Man Woman










Description

1.6 bar compressed air,air consumption under max.power : 600L/min;

2.Powerful and low noise,less than 80Dba under max.power;

3.Set and control torque by adjusting the pressure on air register;

4.Accuracy:±5%,repeatability: ±1%;

5.Optional digital air register, torque precision:±3%, repeatability: ±1%;

6.Compact planet design,small size,higher torque/weight ratio;

7.4-way type of power control system,large-span torque;

8.7-vane type high performance air motor, high efficiency,no impact torque can be continually output;

9.Design of reverse pressure-bias motor provide the max.power and torque in reversing mode, satisfying the request of higher torque when loosing bolts;

10.Positive/reverse button by single hand,switch valve of TOUCH type;

11.Excellent performance of continuous running can meet high workload.

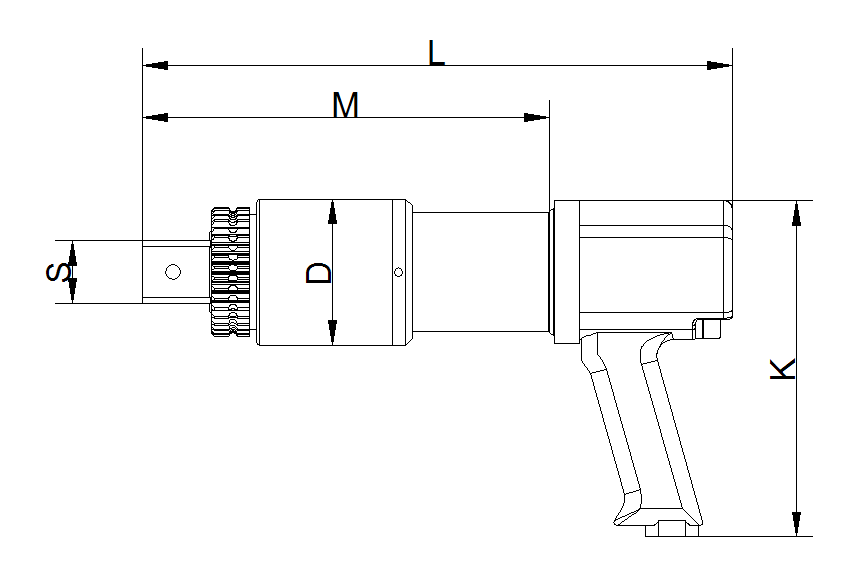

Model

Min torque(N.m)

Max torque(N.m)

S

(mm)

D

(mm)

M

(mm)

L

(mm)

K

(mm)

Weight

(Kg)

Max speed

(rpm)

PW-09SS

290

950

3/4

74

172

302

195

5.4

20.5

PW-16SS

480

1640

1"

78

214

344

195

6.9

11.5

PW-20SS

490

2050

1"

78

214

344

195

6.9

9.0

PW-30SS

810

3100

1"

88

254

384

195

9.7

5.5

PW-40SS

1190

4300

1/2

88

254

384

195

9.7

3.8

PW-60SS

1100

6200

1/2

113

283

413

195

15.1

2.7

PW-80SS

1600

8000

1/2

120

292

422

195

16.8

1.9

PW-100SS

3700

10600

1/2

128

336

466

195

21.6

1.4

PW-120SS

3900

13500

1/2

128

336

466

195

21.6

1.1
